MBBR media, engineered for consistent biological treatment.

Precision-moulded HDPE and PP biofilm carriers that maximise protected surface area, accelerate BOD, COD and ammonia removal, and retrofit straight into the aeration tank you already have.

1200m²/m³
Peak surface area
3
Carrier profiles
92%
Max PSA : TSA ratio
>98%
Void fill
Virgin-grade polymer  ·  Manufactured to order  ·  Quality checked before dispatch  ·  Pan-India & export

What we make

Three carrier profiles, one standard of manufacture

From high-rate BOD reduction to compact nitrification retrofits — matched to the hydraulic and loading conditions of your plant.

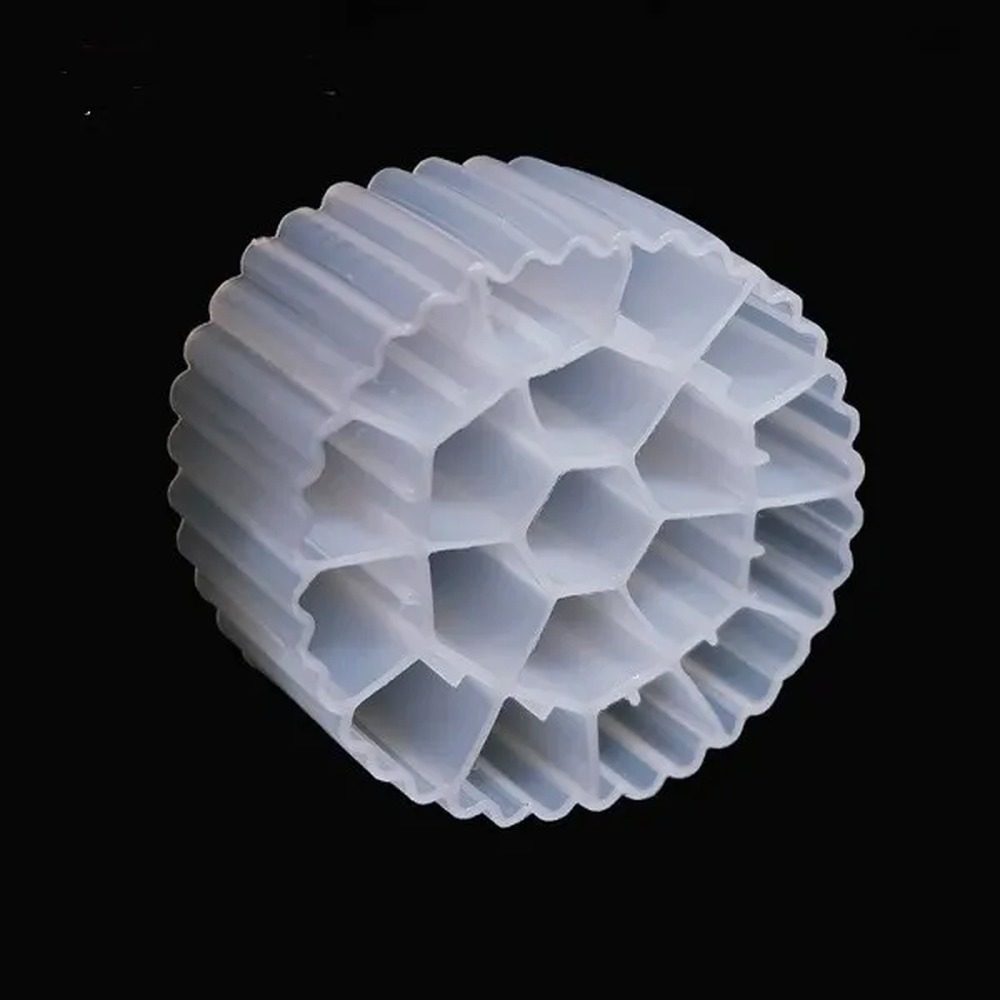

MBBR 25x12 HDPE biofilm carrier media
HDPE

MBBR 25×12

A balanced, general-purpose carrier for BOD and COD reduction in municipal STPs and moderate-strength industrial effluent.

  • Surface area550 m²/m³
  • Size (D × H)25 × 12 mm
  • PSA : TSA78%
MBBR 22x16 polypropylene biofilm carrier media
Polypropylene

MBBR 22×16 / 25×20

Higher void fill, suited to plants prioritising smooth hydraulics and lower headloss across the media bed.

  • Surface area400 / 450 m²/m³
  • Size (D × H)22×16 / 25×20 mm
  • PSA : TSA78% / 85%

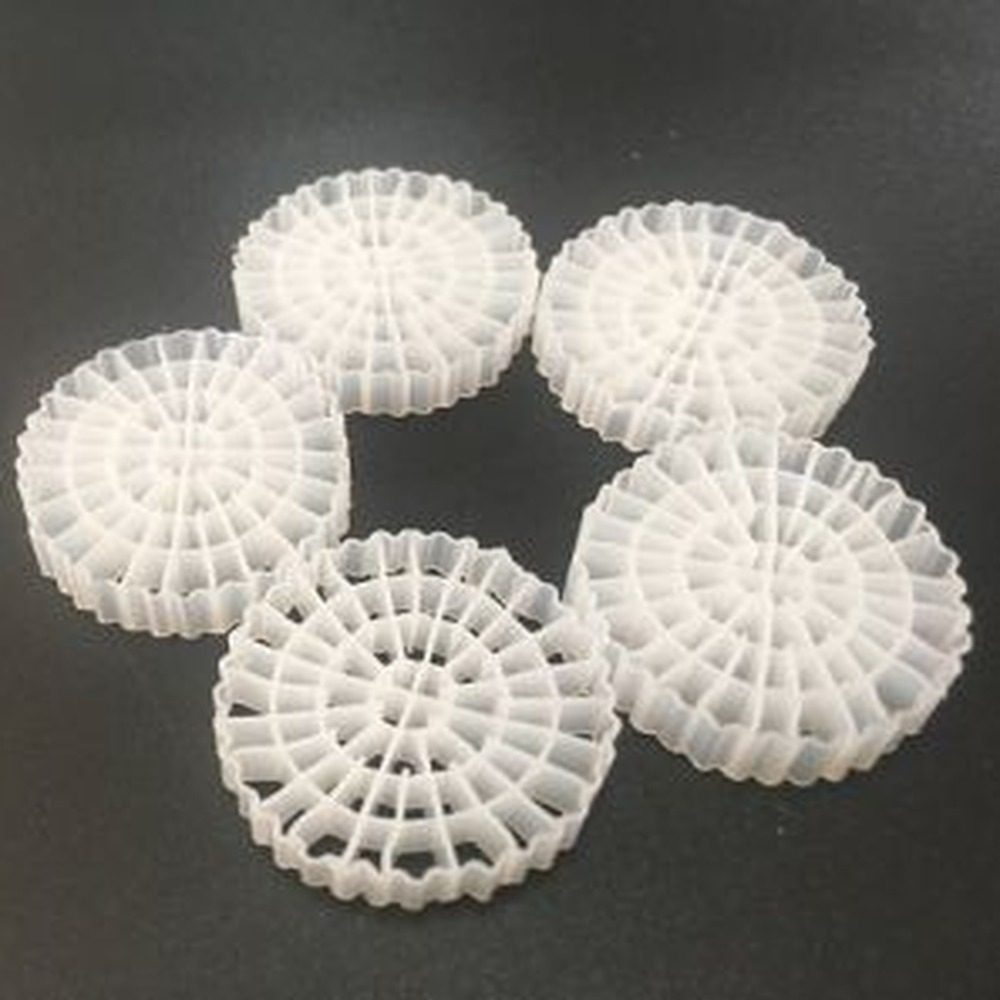

MBBR 25x4 high performance HDPE biofilm carrier media
HDPE · High performance

MBBR 25×4 HP

Very high surface area per m³ — for compact retrofits and nitrification-focused upgrades where tank volume is limited.

  • Surface area1200 m²/m³
  • Size (D × H)25 × 4 mm
  • PSA : TSA92%

Compare full specifications →

Why MBBR

More biomass, in the tank you already have

Because biomass lives inside a protected, high-surface-area carrier rather than in free-floating flocs, MBBR systems sustain a denser, hardier population of treatment bacteria — with a simpler process to operate.

  • Higher biomass density per unit volume — treat more load in the same tank
  • Constant gentle motion sloughs excess biofilm, so carriers self-clean
  • Attached biofilm recovers faster than sludge after shock loads
  • No sludge recycle pumps, no media replacement cycle, less sludge to handle

How MBBR works →

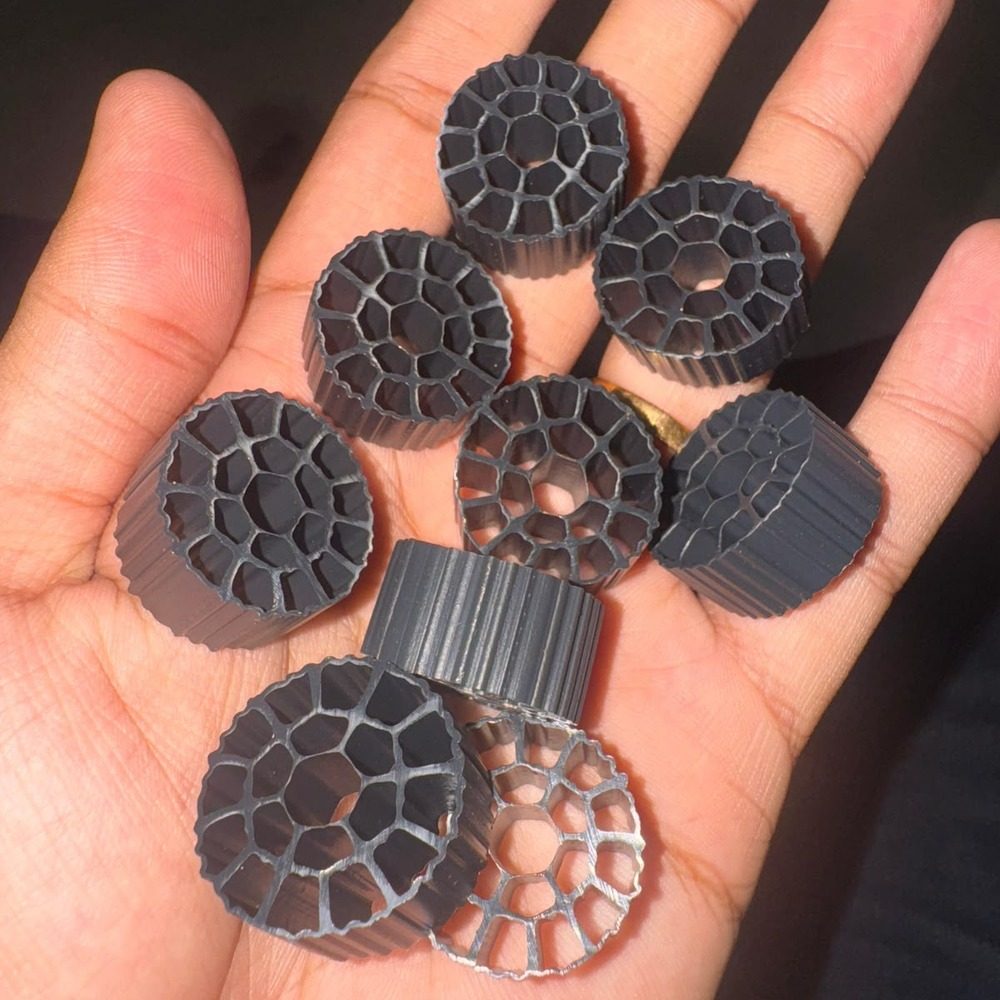

A handful of Apex Aqua Technologies MBBR carrier media

Where it's used

Built for municipal and industrial effluent

Deployed wherever reliable, space-efficient biological treatment is required — from township STPs to high-strength process effluent.

M

Municipal STPs

Domestic sewage for townships, RWAs and municipalities

E

CETP / ETP

Common and industrial effluent treatment plants

P

Pharmaceutical

High-COD effluent from bulk drug & formulation units

D

Dairy & Food

High BOD/COD loads from dairy, beverage and food plants

T

Textile & Dyeing

Colour and organic-load reduction in dye-house effluent

R

Real Estate

Space-efficient STPs for residential & commercial projects

All 12 industries →

Let’s talk about your next treatment plant

Whether you're specifying media for a new STP, retrofitting an existing aeration tank, or sourcing carriers for a large project — share your flow and load data and we'll recommend a profile and fill ratio.
